Room Mode Calculator

Play a slow bass line in a spare bedroom and some notes bloom while others nearly vanish. Walk two steps and the pattern changes. The loudspeaker did not do that. The room did.

Every enclosed space has frequencies at which sound, bouncing between its surfaces, lands back on itself in step and builds. These are room modes. In a theater the troublesome ones sit below what most people can easily hear. In a small room they reach 100 Hz and beyond, they sit far apart, and each one leaves its mark as a swollen note at one spot and a missing note at another. Researchers who study the problem count as small anything from a few cubic meters to a few hundred, and they say plainly that wave behavior dominates the sound in such rooms. The room is a second instrument, tuned once, on the day the walls went up.

How two walls make a standing wave

Picture sound travelling the length of a room, striking the end wall and coming back. At most frequencies the returning wave meets the outgoing one out of step and the two partly cancel. At the frequency whose half wavelength exactly fits the distance between the walls, the reflection arrives in step and the pattern stops travelling. It stands. Pressure swings hardest at the two walls and hardly at all on a plane midway between them. Double the frequency and two half wavelengths fit, with a loud band across the middle and quiet planes at the quarter points. The shape is a cosine drawn from one wall to the other.

The arithmetic is short. An axial mode sits at the speed of sound divided by twice the distance, and again at every whole multiple of that figure. Recording Magazine works it for an 8 foot ceiling with sound at 1130 feet per second: 1130 divided by 16 gives 70.6 Hz, then 141.2 Hz, and so on upward.

The speed of sound is the one input you cannot take with a tape measure. The ideal-gas relation published by NASA ties it to the square root of absolute temperature, and for dry air at 20 C it comes to 343.2 m/s. Temperature is the only variable a weather service needs to compute it. Warm a room by ten degrees and every mode in it rises by nearly two percent.

Three families, and why one leads

A box has three pairs of facing surfaces, so it has three of these series, one each for length, width and height. Those are the axial modes. Sound can also run a circuit of four surfaces, all four walls for instance, which produces the tangential modes, or strike all six, which produces the oblique ones. One formula covers every case: half the speed of sound, times the square root of a sum of three squared terms, each a whole number divided by one room dimension. A single nonzero number makes an axial mode, two make a tangential mode, and three make an oblique one.

The families are not equals. Axial modes have the least attenuated reflections, and teaching notes from Indiana University put an individual tangential mode 3 dB below an axial one and an oblique mode 6 dB below. That is why a first look at any room starts with the axial series.

Take a room 4.7 m long, 4.1 m wide and 3.1 m high at 20 C; the calculator on this page reproduces every figure that follows. The lowest mode runs the length at 36.5 Hz. The width follows at 41.9 Hz and the height at 55.4 Hz. Then comes the first tangential mode, length and width together, at 55.5 Hz, less than 0.2 Hz from its neighbor. By 200 Hz the count has reached 75 modes: 12 axial, 36 tangential and 27 oblique. MathWorks documents the same room, computed with sound at 343 m/s, and its twenty lowest frequencies agree with these to within a tenth of a hertz.

Two things stand out in that list. Low down, the modes are few and far apart. And two of the first four nearly coincide, so one narrow slice of the bass gets a double helping.

The long hunt for a perfect ratio

If modes cannot be removed, perhaps they can be spread evenly. That hope has driven more than seventy years of study. A cube is perhaps the worst case, because all three axial series stack on the same frequencies, and a room with one dimension a whole multiple of another repeats the fault in part. In 1946 Bolt judged rooms by how regularly their mode frequencies were spaced and arrived at 1 : 1.25 : 1.6. In 1971 Louden scored candidates by the standard deviation of that spacing and arrived at 1 : 1.4 : 1.9. Ratios like these came to be called golden.

In 1981 Bonello changed the question. Instead of measuring gaps between neighbors, he counted the modes that fall in each one-third-octave band and asked that the density never decrease from one band to the next going up. A band holding fewer modes than the band below it marks a thin patch in the bass. The test is easy to run and easy to read, which is why room calculators, this one included, still report it.

Later work kept shrinking the claim. The European Broadcasting Union, in its 1998 specification for listening rooms, did not name a best ratio at all. It fenced off the bad ones: length and width must stay inside stated limits relative to height, and ratios within 5 percent of whole numbers are to be avoided. Cox, D’Antonio and Avis searched in 2004 for the flattest predicted response between 20 and 200 Hz and found that the winning ratio depended on the volume of the room. A 2018 study in Archives of Acoustics added a second dependence, reporting optimum ratios that shifted with both room volume and the amount of sound damping.

The honest reading is that a ratio is a way to avoid a bad room, not a recipe for a good one. Most people are not choosing dimensions anyway. They are choosing where to sit.

Where modes stop mattering

Modes multiply quickly as frequency climbs, and at some point they overlap so thoroughly that there is no use in treating them one at a time. Schroeder gave that crossover a formula: 2000 times the square root of the reverberation time in seconds divided by the volume in cubic meters. It marks the point where three modes fall inside the half-width of a single resonance. Below it a room is best understood mode by mode, and ordinary wall panels are largely ineffective. Above it the reflections blend into reverberation. The boundary is an estimate of a gradual transition with no clear-cut definition, not a line painted across the spectrum.

For the example room, 59.7 cubic meters with a reverberation time of 0.4 seconds, the formula gives 164 Hz. That 0.4 seconds is the top of the range the EBU specifies for a listening room, so a deader room of the same size would cross over lower still. Run the same sum for a hall of 15,000 cubic meters with a two second reverberation time and the answer is about 23 Hz. Small rooms have this problem. Large ones mostly do not.

What you can change, and what the model leaves out

Start with the seat, because moving it costs nothing. Every mode has its pressure maximum at the walls it runs between, and every first-order mode has a null at the midpoint, so the two worst places to listen are against a wall and dead center. The Indiana notes dismiss the corner and the exact halfway point outright. Genelec asks for at least one metre between the listening position and the walls, and the EBU asks for 1.5 metres from the side and back walls. Sliding a chair a short way along the room can trade a hole at one frequency for a mild bump at another.

Next comes the source. Genelec advises that the most fundamental modes be excited equally, and suggests placing a single subwoofer along the front wall, slightly off the center line. The EBU lists freedom to position the bass source against the pressure pattern of the modes as the first advantage of a separate bass loudspeaker. Harman’s research goes further: four identical subwoofers, one in each corner, cancel some modes outright and even out the level from seat to seat.

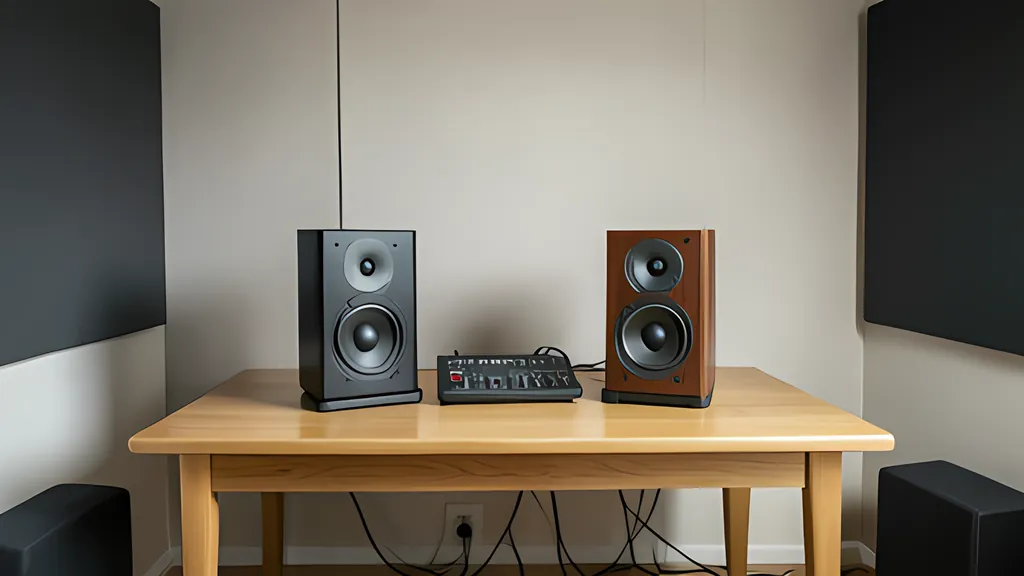

Then treatment. Porous panels of mineral wool or fiberglass work best where the air moves fastest and need real thickness to reach low frequencies, which is why bass traps are deep. Tuned traps are built around a damped panel that resonates. They work where pressure is highest, at walls and in corners, and are usually aimed at 100 Hz and below. Equalization is the tempting shortcut. The EBU permits it, used carefully and only below about 300 Hz, after treatment and placement have been tried; and as the Indiana notes warn, moving around the room is likely to change your opinion of what needed adjusting.

All of this rests on a model with three simplifications, and each fails somewhere. The walls are assumed rigid. Real ones flex. Acoustic Sciences Corporation describes a studio wall of about two layers of drywall with a damping compound that sound pressure can move below 50 Hz, turning walls and ceiling into one giant membrane bass trap. A wall that moves absorbs energy the rigid model keeps. Since less damping means more intense peaks, how hard a real mode rings depends on what the walls are made of, and the formula never asks.

The room is assumed empty, which matters less than it sounds. A Wolfram simulation of a furnished room found its five lowest modes very close to those of the empty one.

And the room is assumed to be a closed, perfect box. An alcove, a sloped ceiling or an open doorway takes a room outside the formula, and the remedy is a numerical model of the actual shape or a measurement. Even in a true rectangle the formula gives frequencies, not loudness. How strongly each mode sounds depends on where the source and the listener sit and on how much the room absorbs, which is why two rooms of identical size can differ in the bass.

So treat a list of modes as a map, not a verdict. It shows which notes the room will lean on and where in the room it leans hardest. A measurement, and your own ears at the listening seat, get the final say.
